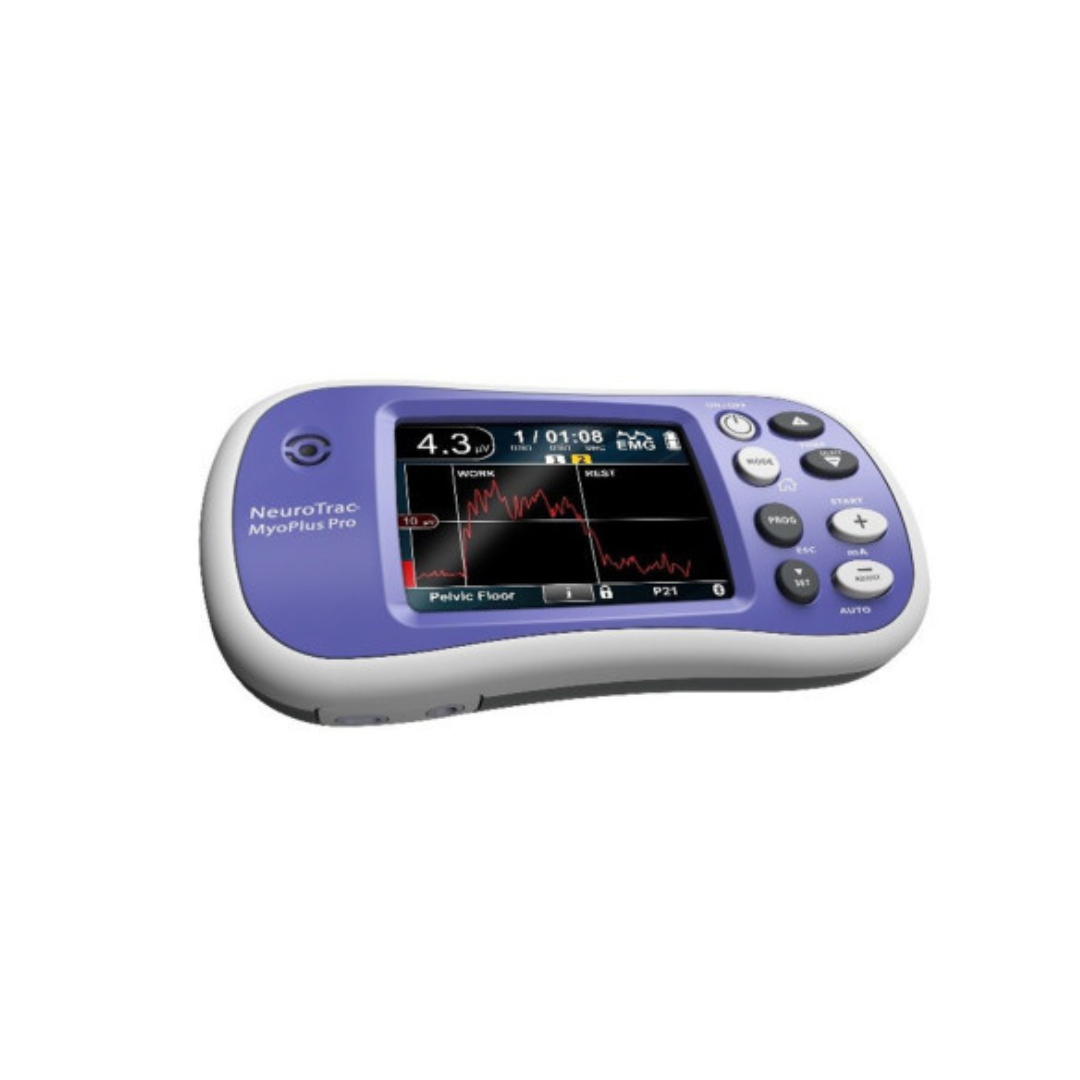

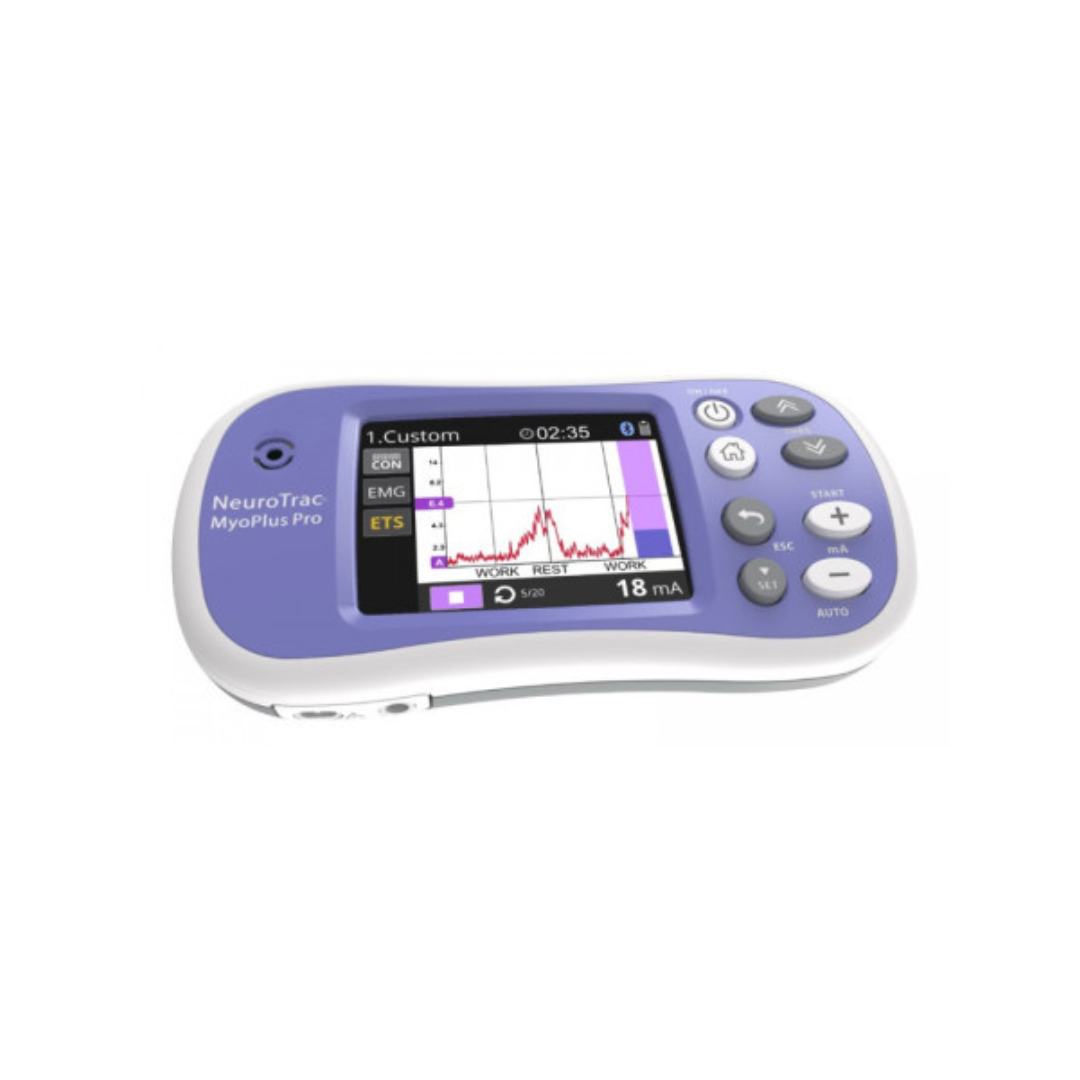

NeuroTrac MyoPlus Pro

NeuroTrac MyoPlus Pro

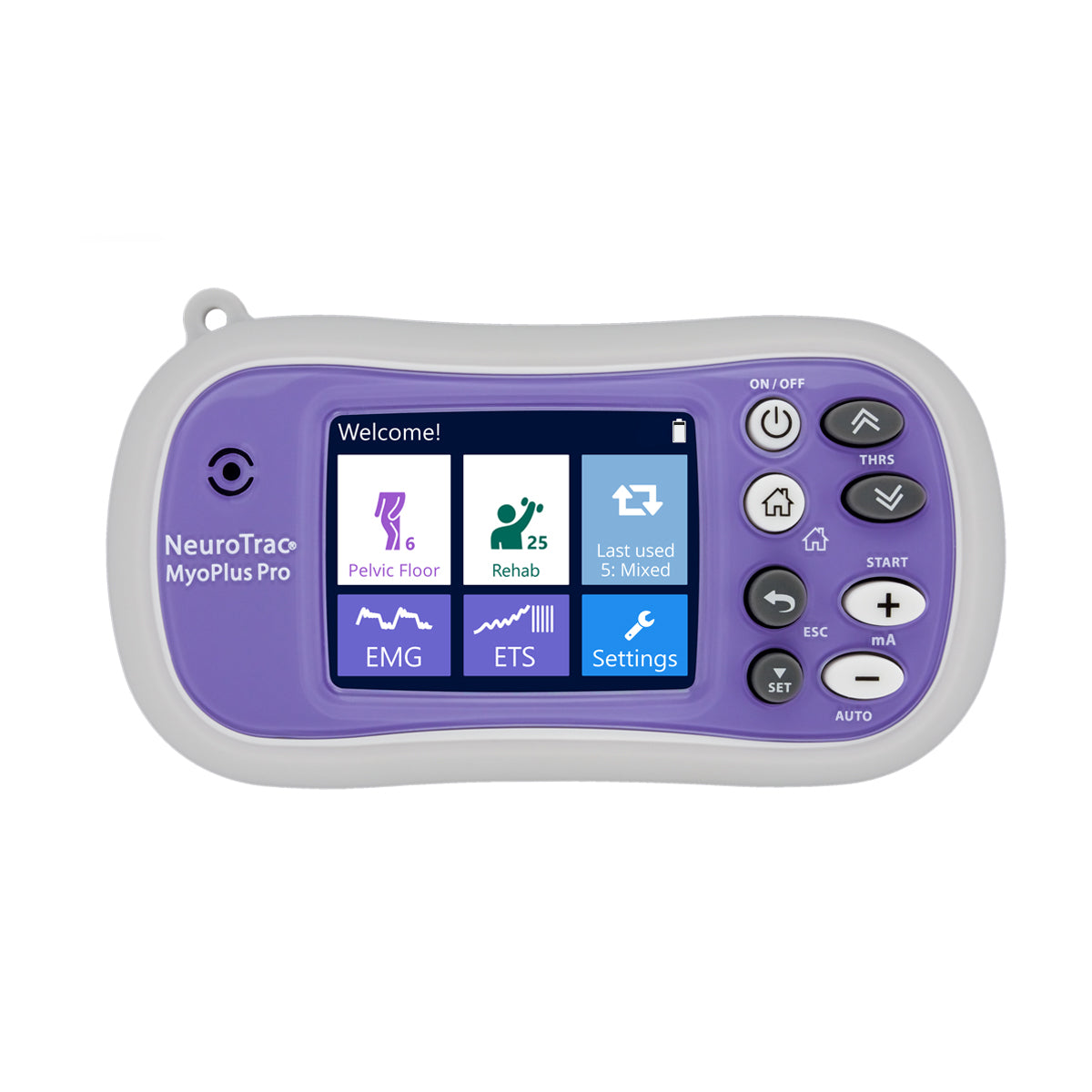

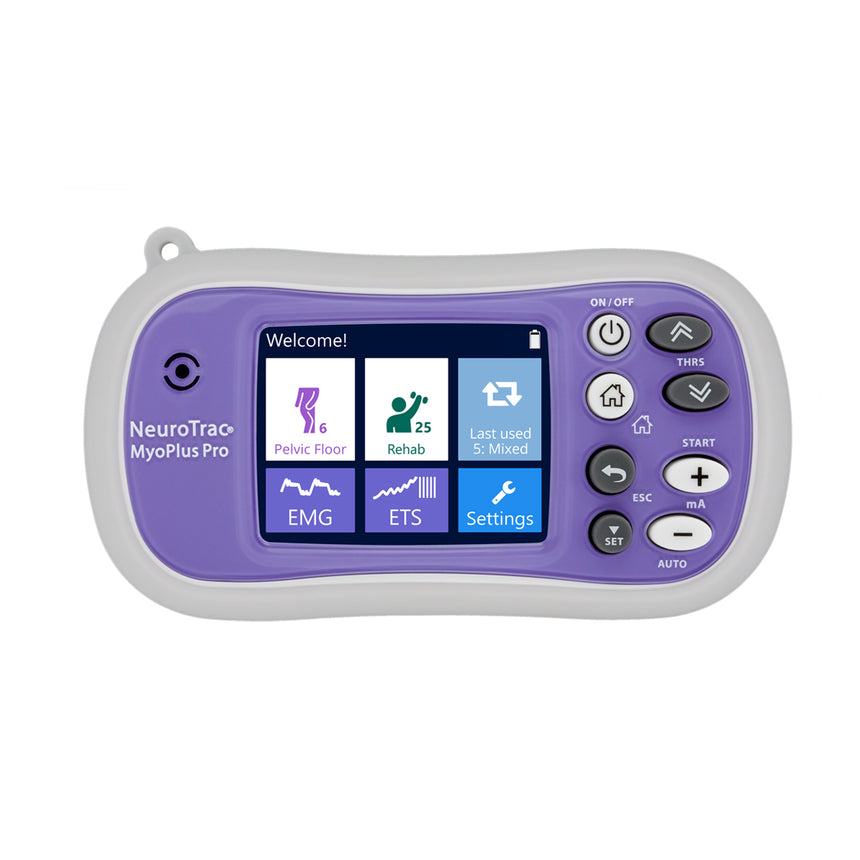

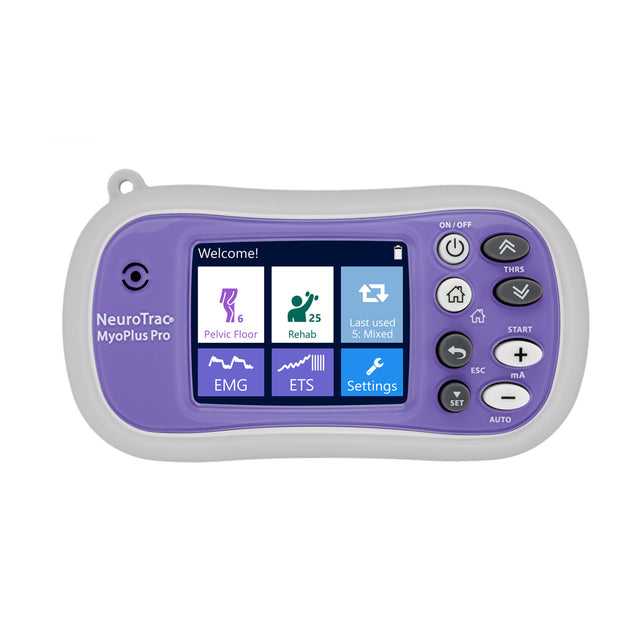

• The new user friendly touch screen based interface makes it a self-explanatory unit with interactive learning on the go, including electrode placement, running EMG graph, EMG biofeedback Games and Templates as well as many other helpful tools
• Pre-set programmes for Incontinence treatment (including a special programme for the treatment of incontinence by stimulating the nervous tibialis posterior with self-adhesive electrodes) and neuro-muscular Rehabilitation

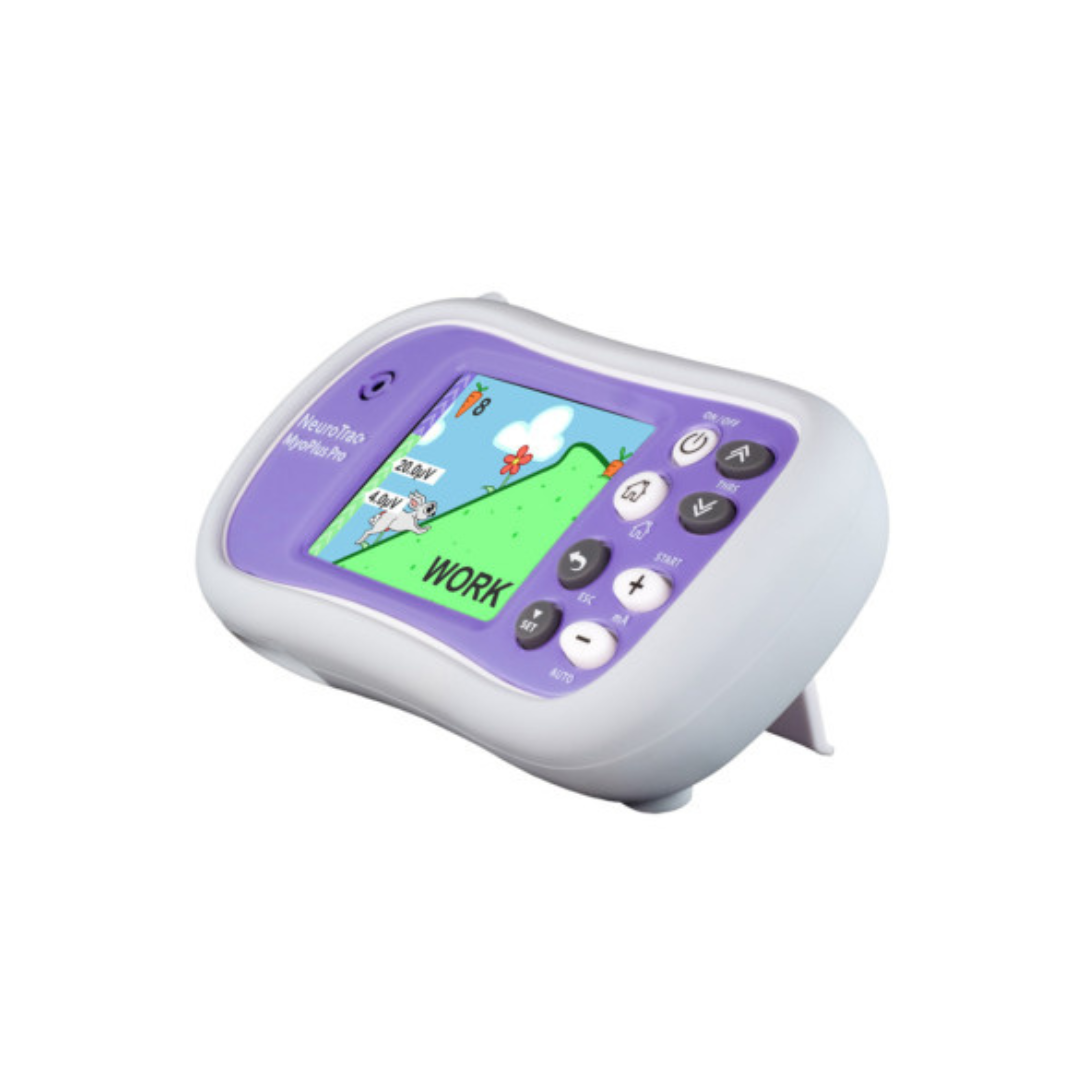

• Supplied with Rubber sleeve with stand and lanyard attachment option
• Designed for Physiotherapist in mind to be used as a portable tool. Suitable as a personal trainer for in-clinic or home use (under guidance)
• Single channel EMG (Biofeedback) combined with 1 channel of NMES (stimulation)
• Single channel ETS (EMG triggered stimulation) with single channel stimulation
• Simple single-phase or multiphase operation: multiphase allows EMG/ETS/STIM to be combined in one programme
• Multilingual full color display screen and voice prompts for Biofeedback
• Manual and Automatic threshold control
• EMG Biofeedback between stimulation (muscle activity and tiredness indication when using muscle stimulation)
• Stand alone device or used in conjunction with established multilingual software
• Up to 10 meters of wireless connection for NeuroTrac Software
• For home users: Produces and prints (with the optional PC Software) the comprehensive patient progress reports on a day to day basis providing average readings on work/rest, peak, onset and muscle release times, work and rest deviations and the average mA current
• Used as a learning tool for both patient and clinician with emphasis on improving treatment techniques in the use of EMG and Neuromuscular stimulation

EMG

• Single channel EMG
• EMG Range: 0.2 to 2000 μV RMS (continuous)
• Sensitivity: 0.l μV RMS
• Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz
• Selectable Bandpass filter – 3db Bandwidth,
  • Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% – Reading below 235 microvolts 10 Hz +/-3 Hz to 370 Hz +/- 10% – Reading above 235 microvolts
  • Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%
• Notch filter: 50 Hz (Canada 60Hz) – 33 dbs (0. 1% accuracy)
• Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
• Work / Rest periods: 2-99 seconds
• Number of Trials: 2-99

NMES, TENS and ETS

• Single channel Stimulator
• Amplitude: 0-90 mA into 500 Ohm load – actual mA will tend to be less than indicated due to Electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA
• Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
• Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current
• Pulse width selection: 50-450 μS in predefined, 50-330μS in custom (10% accuracy)
• Pulse rate selection: 2-100 Hz (5% accuracy)
• Work / Rest periods: 2-99 seconds
• Time 1 – 99 minutes
• Ramp up time: 0.1 – 9.9 seconds
• Preset and user programmable treatment Programs
• Automatic output shut off with detection of open electrode above 10 mA (+/- 2mA)

NeuroTrac Myoplus Pro comes complete with:

• 4 x 1.5V AAA Battery
• One packet of 50mm x 50mm skin electrodes
• One packet of 2 Patient Lead Wires
• One Earth/Reference Lead Wire
• Operating manual
• Software Kit
• Soft carry case

Battery:
Battery set: 4 x 1.5V, AAA battery
Low battery indication at 4.2-4.4 volts +/- 0.2 volts, automatic shut off when voltage drops below the low indication. Replace the batteries immediately!
The device goes off automatically when not in use (energy saving): for example when in settings and no key is pressed over 1 minute when in stimulation mode (home screen) and all channels are 0mA

Expected average battery set life [of standard 850 mAh, alkaline]:
14-18 hours in STIM, 28 hours in EMG mode

Expected service life:
5 years. Careful use and maintenance extend the life of the unit over the service life limit

Environmental Conditions for use:
+5 to +40 degrees Centigrade. 15-90% Humidity

Environmental Conditions for storage & transport:
-25 to +70 degrees Centigrade. 15-90% Humidity
